Coated Vibratory Bowl Feeder Machine Customize Part Feeding Systems
1 . Descriptions:
Vibratory bowl feeders serve as a cost-effective alternative to manual labor, while also optimizing production processes. Their utility extends across a diverse range of industries, including pharmaceuticals, medical, food, automotive, and consumer products.
Leveraging vibration, these feeders are capable of orienting and conveying parts of varying shapes and weights—such as screws, nuts, and washers. This functionality not only boosts productivity but also minimizes the likelihood of human error, a key advantage in precision-driven production environments.
Within automated production lines, vibratory bowl feeders are frequently integrated with other production equipment, such as automatic filling machines and packaging machines, to form a seamless workflow. To further enhance efficiency and accuracy, additional components like pick-up mechanisms and cameras are often incorporated into the vibratory bowl feeder systems.
2 . Specifications:
| Product name |
Vibratory Bowl Feeder |
| Material |
Aluminum(AL7075), Stainless Steel(SUS304) or Based on Customers' Requirements |
| Controller |
CUH,Sanki,Sinfonia,REO,Afag |
| Voltage |
220V 50HZ/110V 60Hz or Based on Customers' Requirements |
| Power |
300W/500W/1000W/1500W/2000W |
|
Color
|
Green or Based on Customers' Requirement |
| After-sales Service |
Spare Parts and Technology Support |
| Warranty |
2 Years |
| Certification |
CE, ISO9001, ROHS |
| Lead Time |
3 Working Weeks |
3 . Key Considerations for Vibratory Bowl Feeders in Gasket Conveying
A vibratory bowl feeder is a type of automated feeding equipment designed for conveying parts, and it is frequently used for transporting gaskets. To ensure the efficient and stable operation of the vibratory bowl feeder in this application, the following key points require attention:
1. Selection of Vibratory Bowl Feeder Material
Gaskets are available in a variety of materials, such as rubber, metal, and plastic. Gaskets made of different materials need to be conveyed using vibratory bowl feeders constructed from corresponding suitable materials. In general, stainless steel is an ideal choice—it is easy to clean, boasts excellent hardness, and offers strong wear resistance, making it suitable for conveying gaskets of various material types.
2. Outlet Design
The discharge outlet of the vibratory bowl feeder must be designed with high precision. This precise design is essential to ensure that gaskets can be transported accurately to the pre-determined position in the production line, avoiding misalignment or jamming that could disrupt the workflow.
3. Monitoring System
To maintain reliable operation, a PLC (Programmable Logic Controller) control system and matching sensors are installed on the vibratory bowl feeder. These components work together to real-time monitor the conveying status of gaskets—including parameters like conveying speed, material flow, and whether there are blockages. If any anomalies are detected, the system can promptly adjust the feeder’s operation (such as modifying vibration amplitude or frequency) to restore normal conveying conditions.

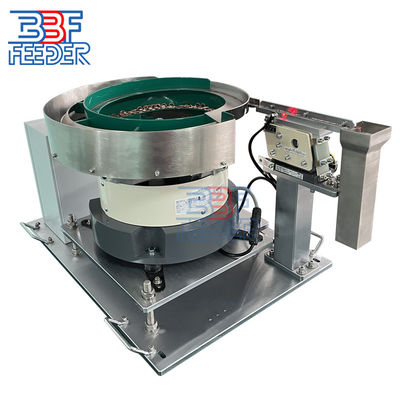

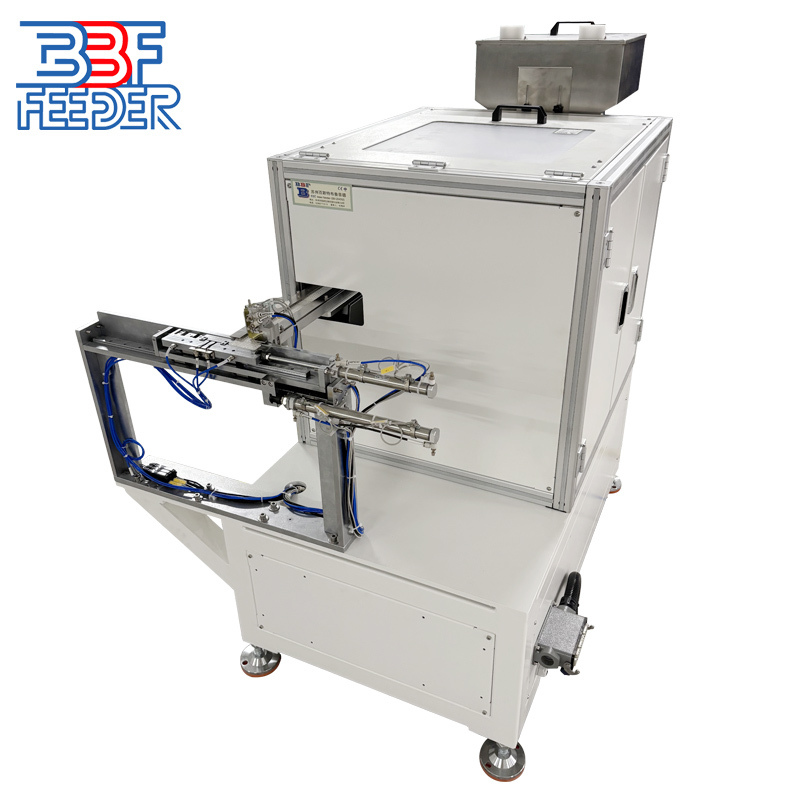

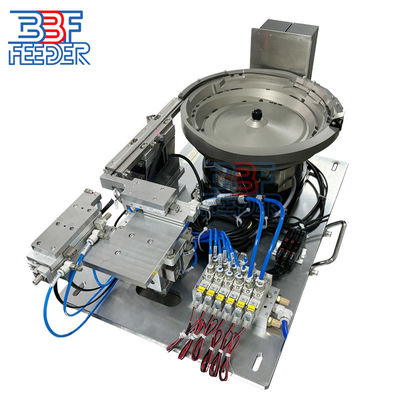

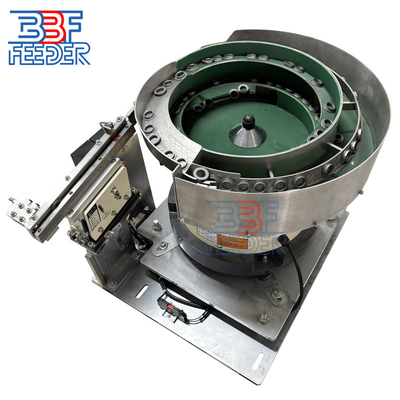

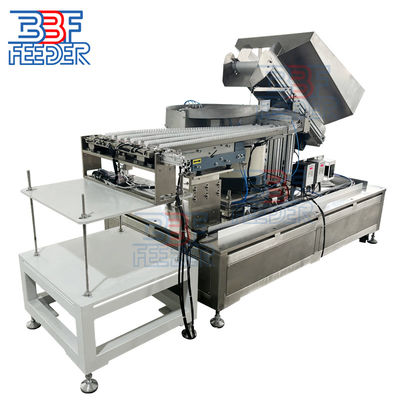

4 . More Pictures:
