Industrial Vibrating Bowl Feeder Low-noise Operation Auto Feeding System

Industrial Vibrating Bowl Feeder Low-noise Operation Auto Feeding System

1 . Descriptions:

Widely used in industrial production, vibratory bowl feeders are the most common parts transfer system for production lines. Since the mid-20th century, vibratory bowl feeders have been highly regarded for their high efficiency.

The primary function of a vibratory bowl feeder is to use vibration to orient and convey parts on a production line. An electromagnet generates vibration which is then converted to mechanical vibration, moving the parts along a track and facilitating their entry into the production line.

The vibratory bowl feeder has a magnetic coil underneath the plate, which is magnetized by an external power source to produce vibration. The coil is mounted on top of a spring, and the movement of the vibratory bowl feeder is constrained by the spring.

2 . Specifications:

3 . Application of Vibratory Bowl Feeders :

A manufacturer of hardware products sent us an inquiry to design a vibratory bowl feeder that would convey nails to a packaging machine. The customer produces many different sizes of nails, and for each size of nails we designed a different size of vibratory bowl feeder to convey the corresponding nails.

The customer wants to adjust the number of nails to be fed into the packaging machine, so the engineers added a PLC intelligent control system, when the customer inputs the number of nails on the panel, the vibratory bowl feeder will convey the corresponding number of nails.

Vibratory bowl feeder plays an important role in conveying small parts like nails to improve production efficiency and reduce the probability of operational errors.

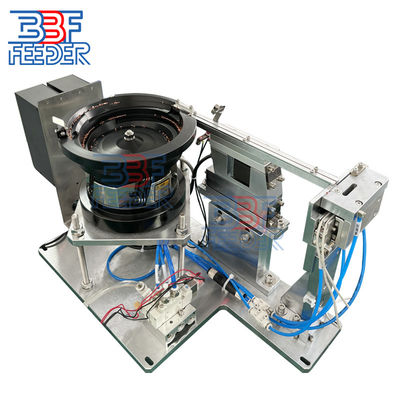

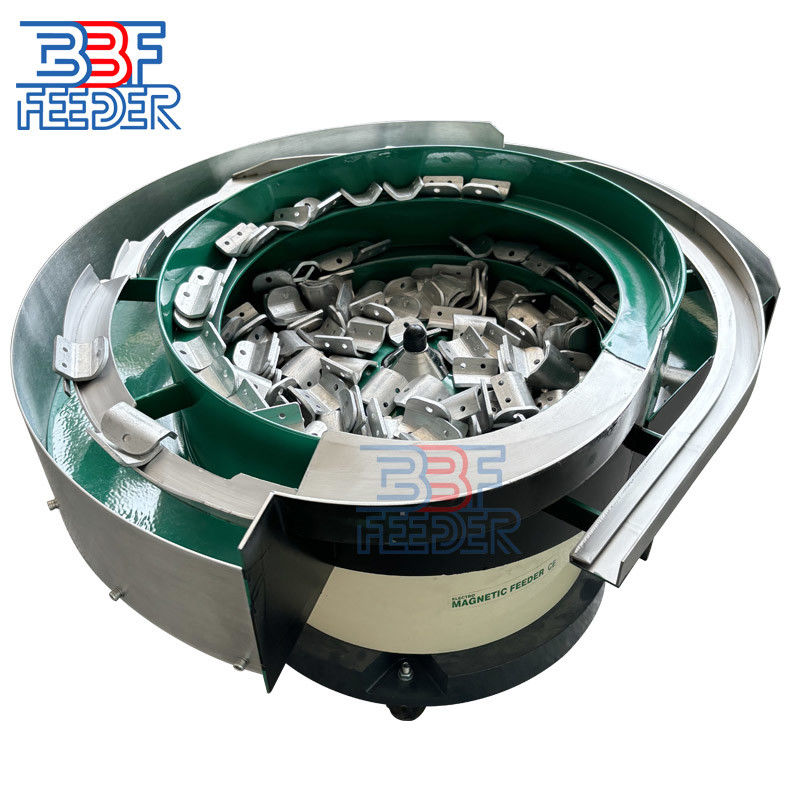

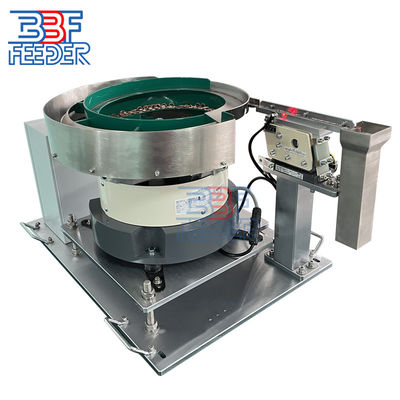

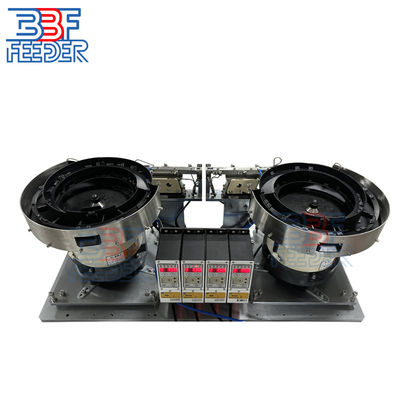

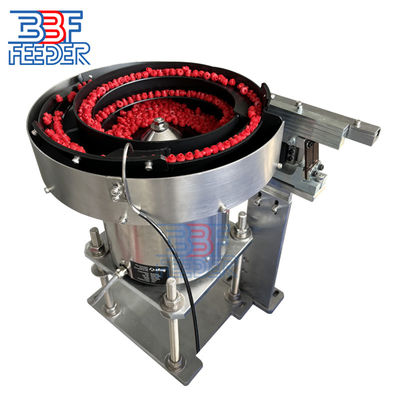

4 . More Pictures:
