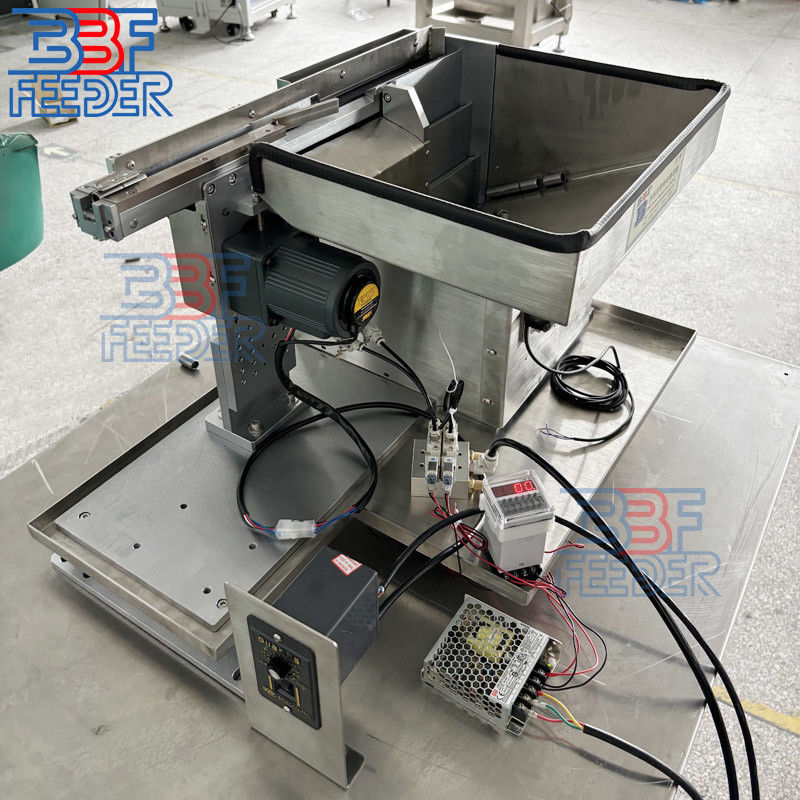

Large Capacity Stepper Feeder Stable Speed Parts Vibrating Step Feeder

Large Capacity Stepper Feeder Stable Speed Parts Vibrating Step Feeder​

1 . Descriptions:

The step feeder is capable of conveying both spherical and cylindrical parts. Compared to vibratory bowl feeders, the step feeder operates with less noise and gently handles parts. Our step feeder is available in a variety of configurations and can be fully adapted to the requirements of automated production lines.

The main method of conveying material is through a step shaped device, which lifts and lowers the part onto a track in a cyclical motion. Regular material can be conveyed directly to a specified location on the track, while more complex products are bounced off the orientation track and returned to the incorrectly oriented product for the next orientation.

The simple linear motion of the step feeder allows for essentially no wear between the materials and no wear between the materials and the machine, ensuring a long service life for the step feeder.

2 . Specifications:

3 . Advantages of Step Feeder :

Before deciding whether or not to use a step feeder, the parameters of the parts need to be taken into account. Step feeders are suitable for conveying cylindrical or spherical materials, such as pipes, nuts, springs and other similar products.

The material of the material is one of the factors in deciding whether or not it can be conveyed with a step feeder, metal materials, plastic parts, composite materials and other hard materials can be completely conveyed with a step feeder.

The speed of the step feeder is relatively slow, but its advantage lies in the accurate feeding and positioning, especially suitable for applications that require high precision and stable feeding.

We specialize in automated conveying equipment for more than twenty years and have rich experience, if you need, welcome to contact us, we will provide you with professional services.

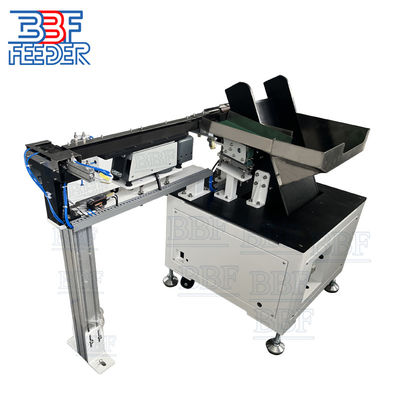

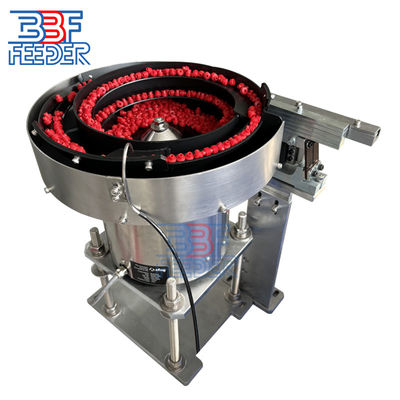

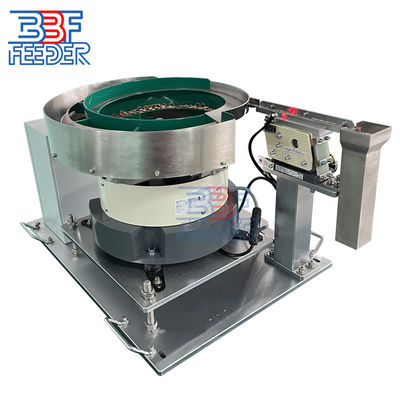

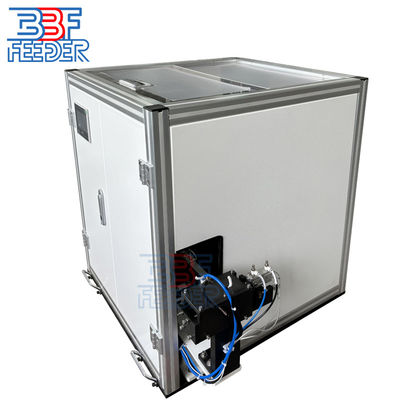

4 . More Pictures:
