1 . Descriptions:

Vibratory bowl feeder have an important role to play in automated manufacturing by transporting parts in a sequential order to the production line in preparation for further processing and packaging, significantly increasing productivity.

When the vibratory bowl feeder starts working, the parts placed in the bowl move along the tracks, and as they pass through these specially tailored tracks, the parts are reoriented, and if the parts are not in the required condition, they are pushed into the center of the bowl, followed by moving along the tracks again, eventually reaching the correct orientation.

2 . Specifications:

3 . Conveyance of Springs on Vibratory Bowl Feeders :

Unlike other components that do not deform easily, vibratory bowl feeders need to take into account the special nature of springs when conveying them.

The size and shape of the springs are not uniform, which may lead to uneven alignment between the springs during conveying or even clogging of the conveying pipe or track. In this case, different shapes and sizes of springs are accommodated by adjusting parameters such as the amplitude, frequency and angle of the vibratory bowl feeder to change the force of the vibratory bowl feeder on the springs and the conveying effect.

Since springs are elastic, they may deform and collide or intersect with each other during transportation. To solve this problem, engineers optimize the conveying pipe or track, and also use auxiliary devices such as dividers to reduce mutual interference and blockage between springs and ensure the stability and accuracy of the vibration plate.

To avoid conveying springs too fast or too slow, we usually assemble sensors, PLC control systems and other automation equipment on the vibratory bowl feeder to monitor and regulate the conveying process in real time.

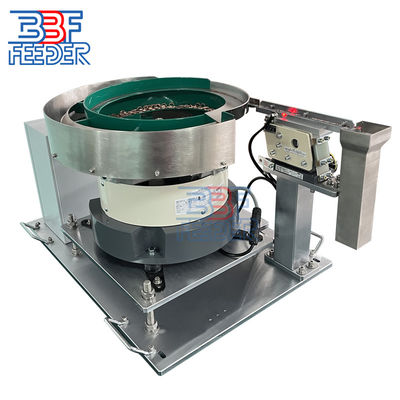

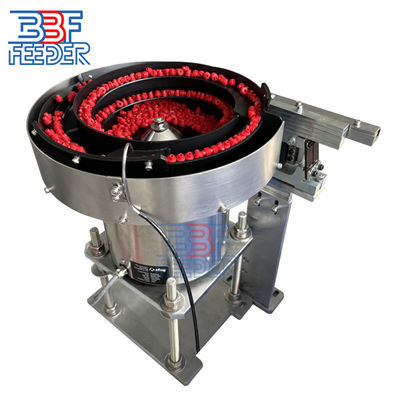

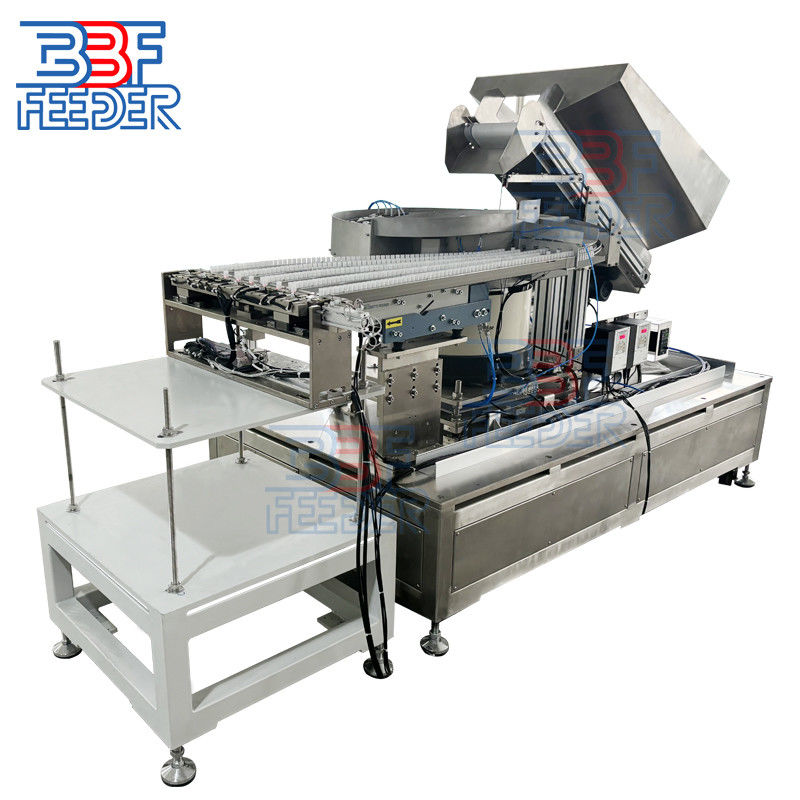

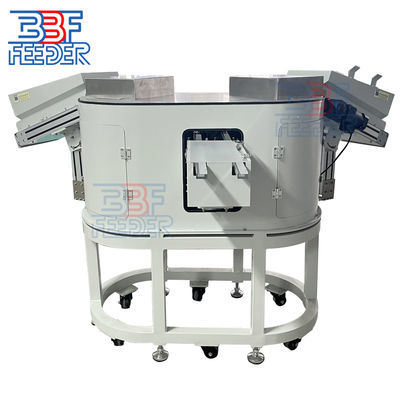

4 . More Pictures:
