Vibratory Bowl Feeder Metal O-rings Gaskets Washers Vibrating Feeding Machine

Vibratory Bowl Feeder Metal O-rings Gaskets Washers Vibrating Feeding Machine

1 . Descriptions:

Vibratory bowl feeders are widely used in industrial production environments and are considered the most versatile and commonly used parts-feeding systems for assembly line production. These self-contained mechanical devices have a long history and have been in use since the mid-20th century, known for their resilience and efficiency.

The main principle of vibratory bowl feeders is the use of vibration to align and feed small parts in production lines. This vibration is generated by electromagnets. The device converts electromagnetically produced vibrations into mechanical vibrations, which are then harnessed and transferred to the conveying track of the bowl feeder. The conveying track moves the components along, guiding them into the production line.

Beneath the spring-mounted bowl, a magnetic coil is positioned. This coil is magnetized by an external power source, creating an electromagnetic actuation that generates vibrations. The mounting on the springs limits the vertical movement of the bowl's actuation. Typically, 1 to 6 electromagnets are placed under the feeder base. Once the electromagnetic vibrations are converted into mechanical vibrations, the components and parts in the bowl feeder are propelled onto the conveying tracks of the bowl, ready for production.

2 . Specifications:

3 . Characteristics of Vibratory Bowl Feeder :

Easy to clean - The Vibratory bowl feeder is designed for easy cleaning, allowing you to effortlessly remove any remaining ingredients. You can use a variety of cleaning methods, including steam cleaning, water cleaning or solvent cleaning.

Different ingredients can be accommodated - Vibrating bowl feeders have the ability to accommodate a variety of ingredients. These feeders can hold dry ingredients, wet ingredients, and sticky or sticky ingredients.

Customizable and modular - Vibrating bowl feeders are modular and customizable, giving you the flexibility to expand and modify your line as needed.

Precision - Vibrating bowl feeders provide high precision and ensure a consistent and reliable filling process.

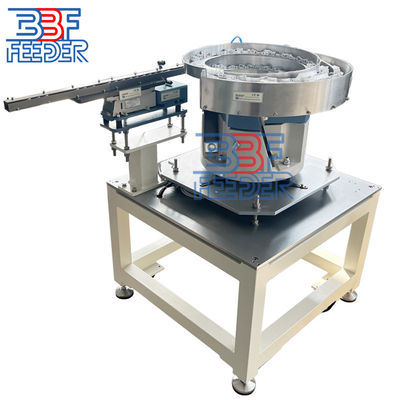

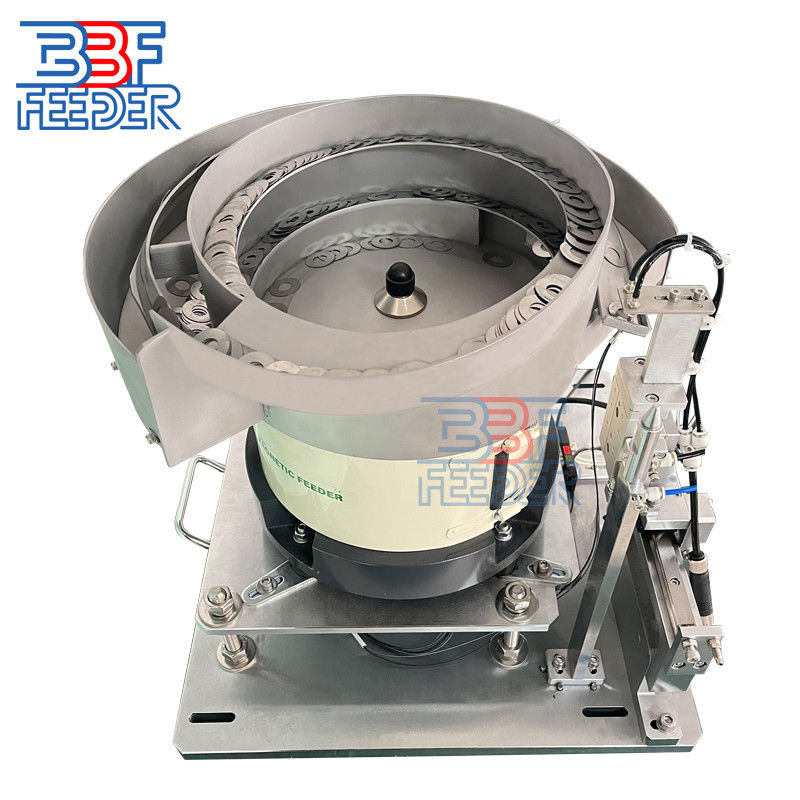

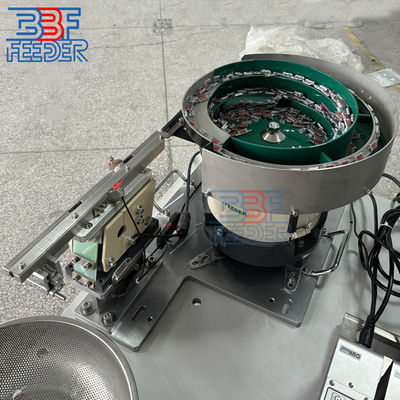

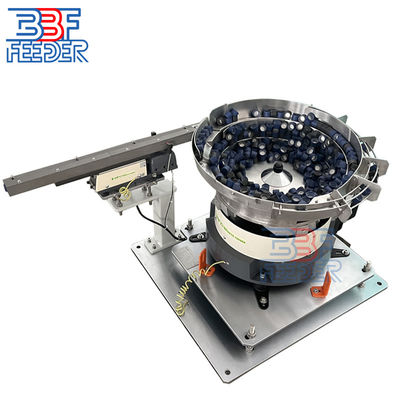

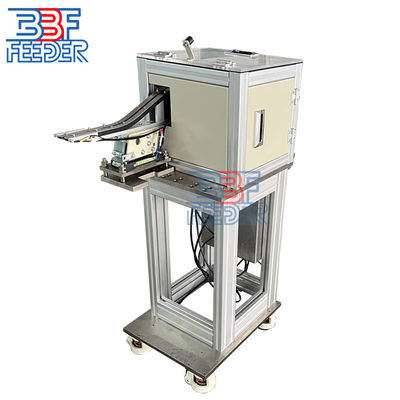

4 . More Pictures:
