Packing Machine Feeding System Metal Parts Vibratory Bowl Feeder

Packing Machine Feeding System Metal Parts Vibratory Bowl Feeder

1 . Descriptions:

The vibratory bowl feeder is an essential component of manufacturing automation, as it efficiently aligns and feeds small parts and components into production lines for further processing or packaging. Its superior ability to sort and orient bulk parts surpasses the speed and accuracy of a line operator, resulting in cost savings and improved precision.

This self-contained system comprises a specially designed bowl that utilizes a vibrating drive unit to orient the components. The bowl is mounted on a base with springs that control its vertical movement. As the parts and components move along an inclined track, they reach the edge of the bowl. The bowl's tooling ensures that the components are correctly positioned for processing. In case of misalignment, the parts are pushed towards the center of the bowl, where they cycle through and travel up the track again to be properly oriented.

To summarize, the vibratory bowl feeder is a reliable solution for handling and sorting bulk products, streamlining the preparation of processing and packaging lines. Its integration into manufacturing automation significantly enhances the efficiency of production lines.

2 . Specifications:

3 . Pros of Using a Vibratory Bowl Feeder :

Vibratory bowl feeders serve various industrial sectors, with common applications in industries that require flexible feeding systems for high-volume production of parts or pieces. These sectors encompass the pharmaceutical industry, as well as the processing of consumer electronic components, electrical parts, plastic parts and components, cosmetics, food, fashion, and automotive, among others.

A notable example of a vibratory bowl feeder application is in vial and tube capping machines. These automated systems are specifically designed to handle small polypropylene screw-on caps for microcentrifuge tubes and vials. The caps and vials are supplied from vibratory bowls at a rate of approximately 80 parts per minute. The system can be easily adapted to handle similar products.

Another application for bowl feeders is in pill bottling systems. Vibratory bowl feeders are capable of dispensing large batches of pills or capsules for counting and bottling. A significant quantity of pills is deposited into the top of the vibratory feeder. The vibration within the feeder ensures that the pills continuously move toward the exit and enter the bottle one by one, preventing congestion.

Vibratory bowl feeders offer industries a cost-effective automated production system that enhances efficiency while reducing production costs. They provide a reliable solution for parts feeding, making them indispensable in various manufacturing processes.

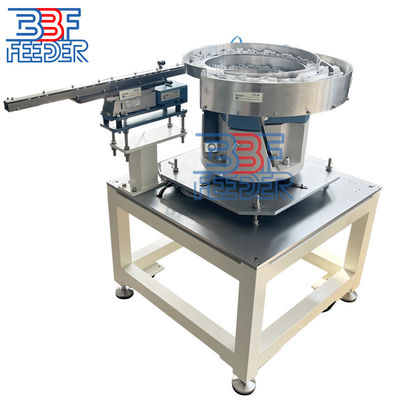

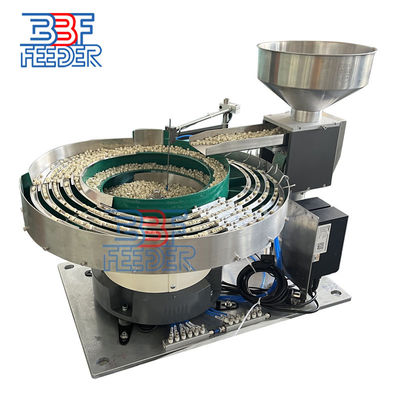

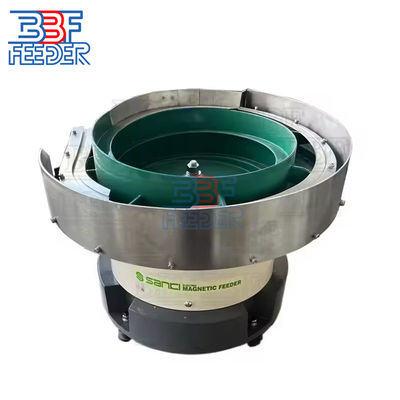

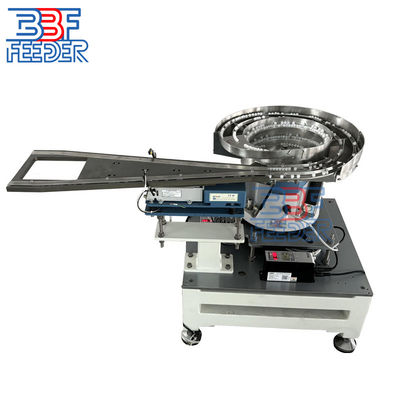

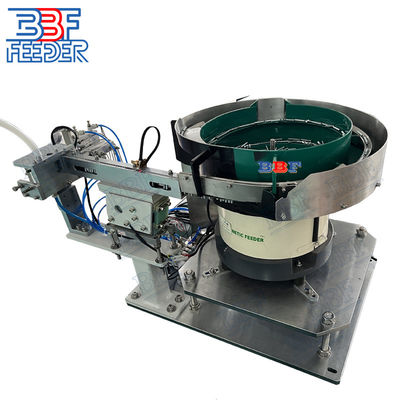

4 . More Pictures:
