Counting Function Vibratory Bowl Feeder Metal Washer Vibrating Feeding

Counting Function Vibratory Bowl Feeder Metal Washer Vibrating Feeding

1 . Descriptions:

Vibratory bowl feeders are widely used in industrial production environments and are considered the most versatile and commonly used parts-feeding systems for assembly line production. These self-contained mechanical devices have a long history and have been in use since the mid-20th century, known for their resilience and efficiency.

As the name suggests, vibratory bowl feeders utilize vibration to align and feed small parts in production lines. The vibrations are generated using electromagnets. The device converts electromagnetically produced vibrations into mechanical vibrations, which are then harnessed and transferred to the conveying track of the bowl feeder. The conveying track moves the components along, guiding them into the production line.

A magnetic coil is positioned beneath the spring-mounted bowl. This coil is magnetized by an external power source, creating an electromagnetic actuation that generates vibrations. The bowl's actuation is constrained to limit vertical movement due to its mounting on the springs. Generally, 1 to 6 electromagnets are placed under the feeder base. Once the electromagnetic vibrations are converted into mechanical vibrations, the components and parts in the bowl feeder are propelled onto the bowl's conveying tracks, ready for production.

2 . Specifications:

3 . Pros of Using a Vibratory Bowl Feeder :

Easy to Clean - Vibratory bowl feeders are designed with easy cleaning in mind, allowing you to effortlessly remove any remaining ingredients. You can employ various cleaning methods, including steam cleaning, water cleaning, or using solvents.

Can Hold Different Ingredients - Vibratory bowl feeders have the capacity to hold a wide range of ingredients. These feeders can accommodate dry ingredients, wet ingredients, as well as sticky or thick ingredients.

Customizable and Modular - Vibratory bowl feeders are modular and customizable, providing you with the flexibility to expand and modify your production line as required.

Accurate - Vibratory bowl feeders deliver high accuracy, ensuring a consistent and reliable filling process.

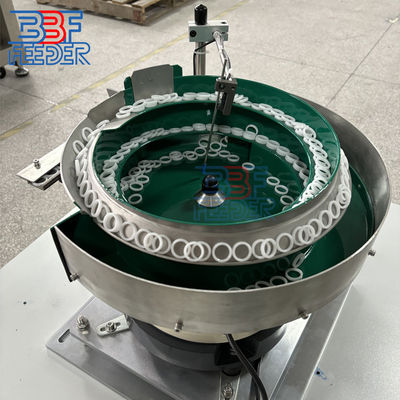

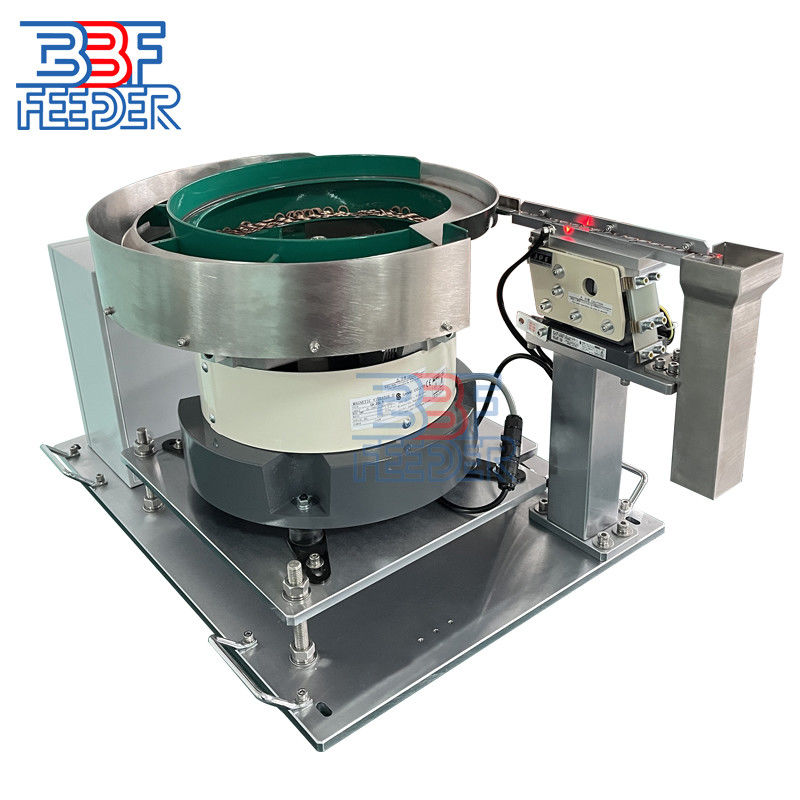

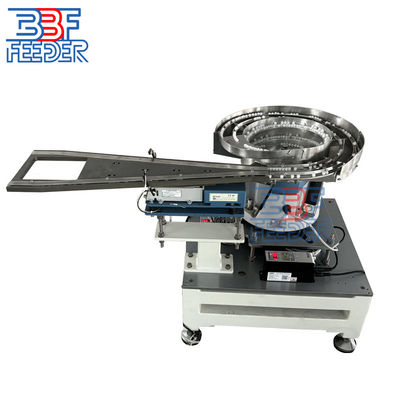

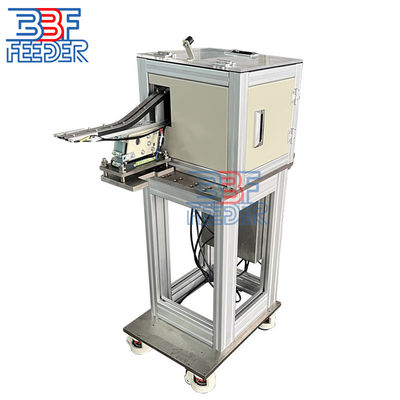

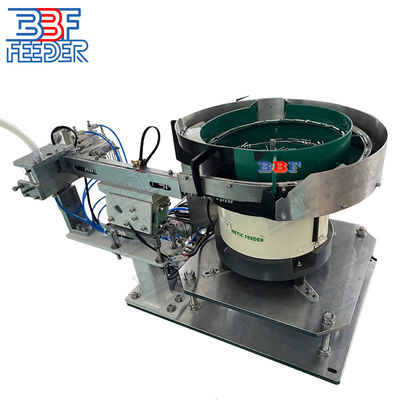

4 . More Pictures:
