Assembly Line Parts Feeding Circular Linear Vibratory Bowl Feeder

Assembly Line Parts Feeding Circular Linear Vibratory Bowl Feeder

1 . Descriptions:

The vibratory bowl feeder plays a crucial role in manufacturing automation, offering efficient alignment and feeding of small parts and components into production lines for packaging or further processing. Its ability to sort and orient bulk parts surpasses the speed and accuracy of a line operator, leading to cost savings and improved precision.

This self-contained system consists of a specially designed bowl that uses a vibrating drive unit to orient components. The bowl is mounted on a base equipped with springs that control its vertical movement. As parts and components travel along an inclined track, they reach the edge of the bowl. The bowl's tooling ensures that the components are properly positioned for processing. If misalignment occurs, the parts are pushed towards the center of the bowl, where they cycle through and travel up the track again to be correctly oriented.

In summary, the vibratory bowl feeder remains a reliable solution for handling and sorting bulk products, streamlining the preparation of processing and packaging lines. Its integration into manufacturing automation significantly enhances production line efficiency.

2 . Specifications:

3 . Vibratory Bowl Feeder Application Examples :

Vibratory bowl feeders serve a wide range of industrial sectors, with their most common applications found in industries that require flexible feeding systems for high-volume production of parts or pieces. These industries include pharmaceuticals, consumer electronics, electrical parts, plastics, cosmetics, food, fashion, and automotive.

One notable application of vibratory bowl feeders is in vial and tube capping machines. These automated systems are specifically designed to handle small polypropylene screw-on caps for microcentrifuge tubes and vials. The caps and vials are fed from vibratory bowls at a rate of approximately 80 parts per minute. The system can also be easily modified to accommodate similar products.

Another application for bowl feeders is in pill bottling systems. Large batches of pills or capsules can be deposited into the vibratory bowl feeder for counting and bottling purposes. The pills are dumped into the top of the vibratory feeder, and the vibration within the feeder ensures that the pills continue to move toward the exit, entering the bottle one by one without causing congestion.

Vibratory bowl feeders provide industries with a cost-effective automated production system that enhances efficiency while reducing production costs. They offer a reliable solution for parts feeding, making them an invaluable asset in various manufacturing processes.

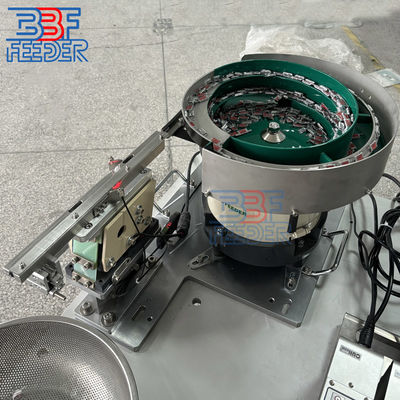

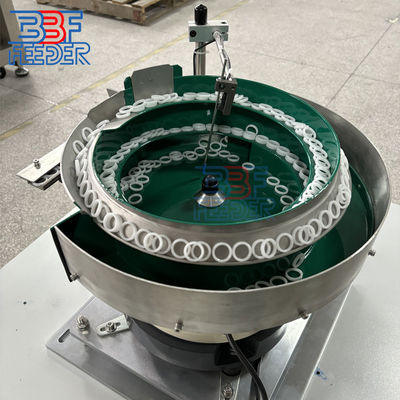

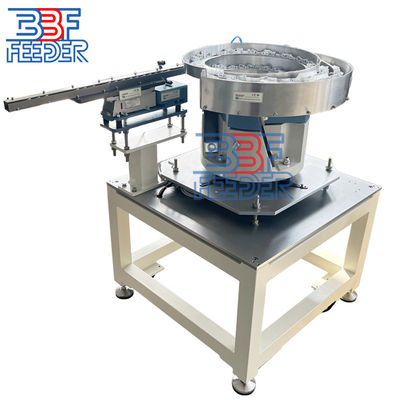

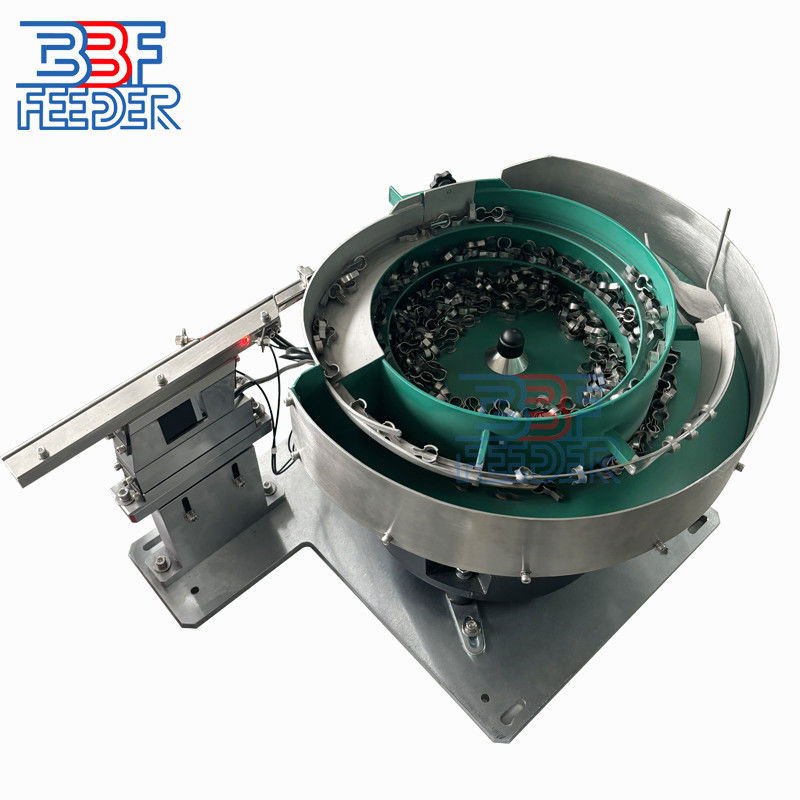

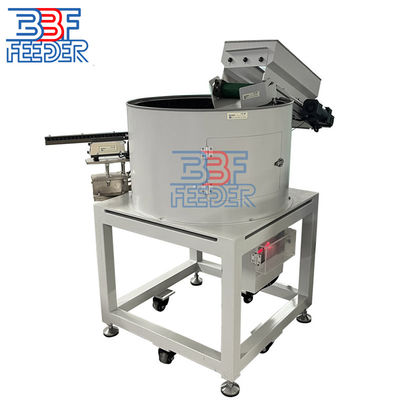

4 . More Pictures:
