Custom Parts Feeding System Vibratory Bowl Feeder PU Vibrating Bowl

Custom Parts Feeding System Vibratory Bowl Feeder PU Vibrating Bowl

1 . Descriptions:

Vibratory bowl feeders, widely used in industrial production environments, are a type of versatile machinery or equipment for parts-feeding systems on assembly lines. These self-contained mechanical devices have been in use since the mid-20th century, offering resilience and efficiency.

The main principle behind vibratory bowl feeders is the utilization of vibration to align and feed small parts in production lines. Electromagnets are employed to generate vibrations, which are then converted into mechanical vibrations. These mechanical vibrations are harnessed and transferred to the conveying track on the bowl, propelling the components along the track and feeding them into the production line.

To achieve the electromagnetic actuation, a magnetic coil is positioned beneath the bowl, which is mounted on springs to restrict vertical movement. An external power source magnetizes the coil, creating vibrations that actuate the bowl. Typically, 1 to 6 electromagnets are placed under the feeder base. Once the electromagnetic vibrations are converted into mechanical vibrations, the components in the bowl feeder are propelled onto the bowl conveying tracks for further production.

2 . Specifications:

3 . Pros of Using a Vibratory Bowl Feeder :

Easy to Clean:
Vibratory bowl feeders are designed to be easy to clean so that you can remove any ingredients that remain inside. You can use a variety of cleaning methods to do so, including steam cleaning and cleaning with water or solvent.

Can Hold Different Ingredients:
Vibratory bowl feeders can hold a wide range of ingredients. You can use these feeders to hold dry ingredients, wet ingredients, and even sticky/thick ingredients.

Customizable and Modular:
Vibratory bowl feeders are modular and customizable, allowing you to expand and modify your production line as needed.

Accurate:
Vibratory bowl feeders are accurate, ensuring that the filling process remains consistent and reliable.

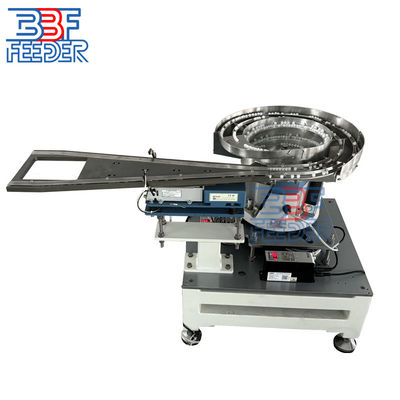

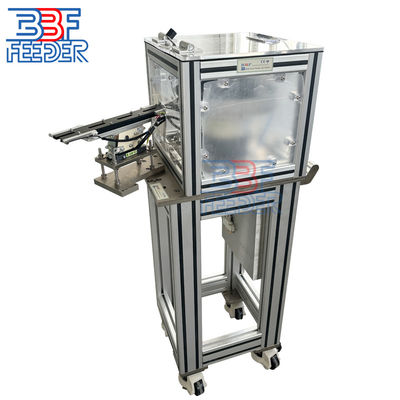

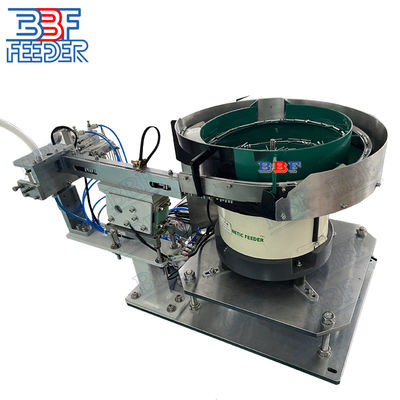

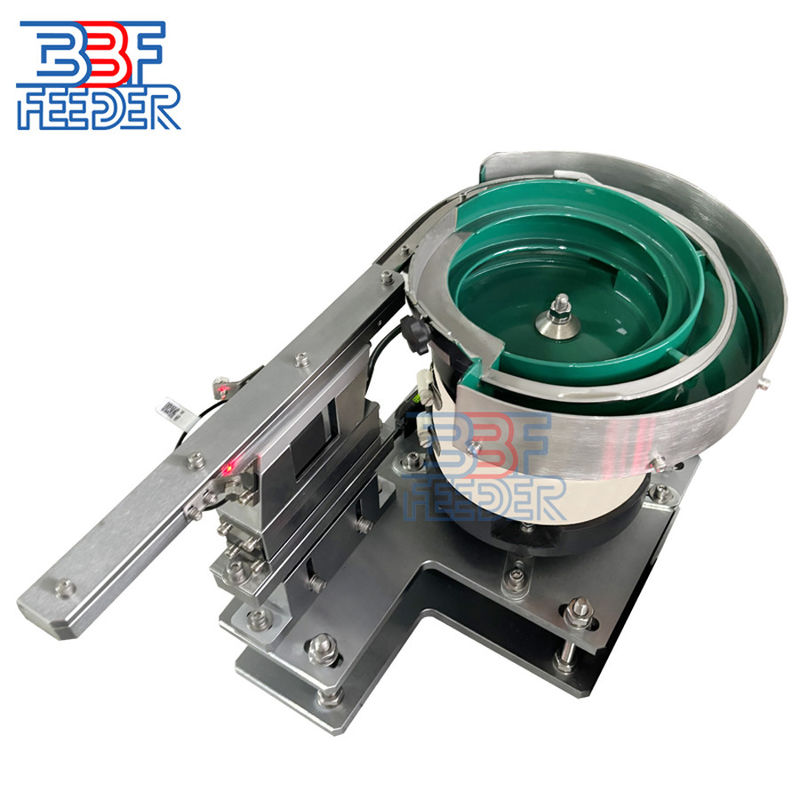

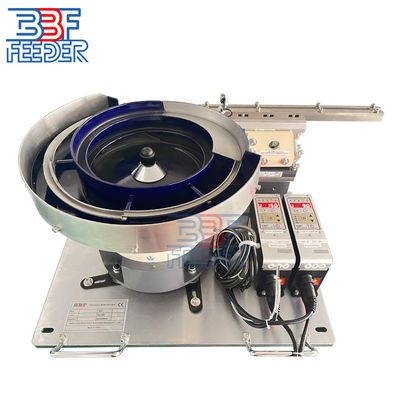

4 . More Pictures:
