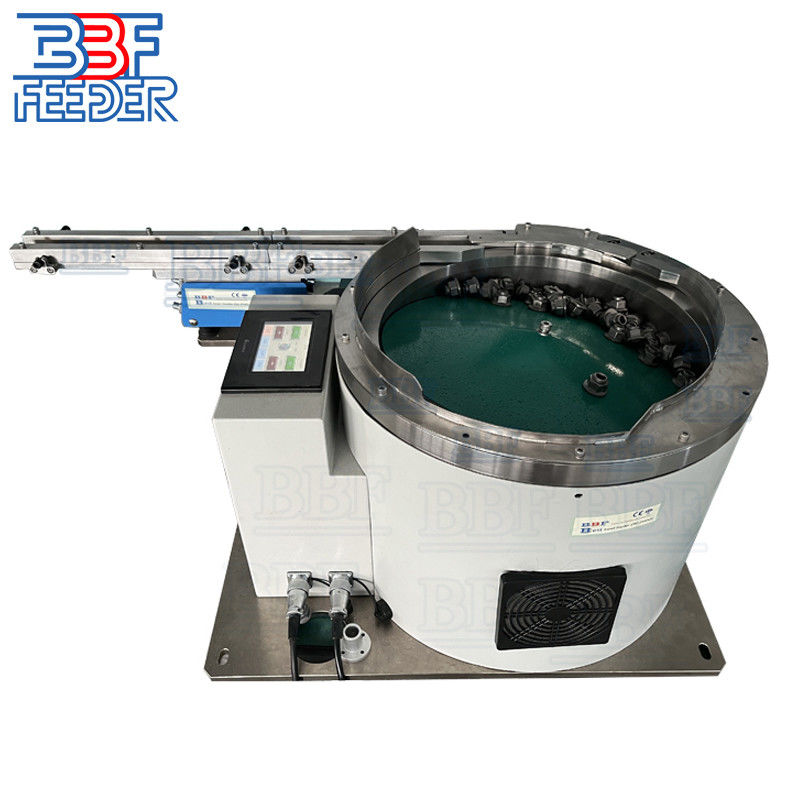

Adjustable Speed Centrifugal Bowl Feeder Plastic Parts Feeding Machine
1 . Descriptions:
A centrifugal feeder is an efficient and gentle feeding unit that can handle components of different shapes without causing damage. It consists of a conical central rotor surrounded by a circular bowl wall. By using rotary force, the feeder separates and spins the component parts, pushing them towards the outer edge of the bowl.
Centrifugal feeders are ideal for high-speed applications and are known for their low circulation, which reduces the risk of component damage.
Our company specializes in customized centrifugal feeder systems that cover the entire production line, including handling, transportation with conveyor belts, and packing operations. Our packing capabilities include capping, labeling, cartoning, and flow wrapping.
The centrifugal feeder features a center disc and a horizontally mounted feeding bowl. These components can rotate independently at variable speeds, allowing the feeder to handle up to 3,000 parts per minute. Typically, the components are directed towards the raised edge of the centrifugal feeder disc.
Centrifugal feeders are widely used in industries such as pharmaceuticals, healthcare, food, plastics, and Fast-Moving Consumer Goods.
We highly recommend our centrifugal feeder system solutions to businesses in the manufacturing, food, pharmaceutical, and medical sectors that require high-speed handling of small and irregularly shaped components.
2 . Specifications:
| Product name |
Centrifugal Bowl Feeder |
| Material |
Stainless Steel(SUS304) or Based on Customers' Requirements |
| Controller |
CUH,Sanki,Sinfonia,REO,Afag |
| Voltage |
220V 50HZ/110V 60Hz or Based on Customers' Requirements |
| Power |
300W/500W/1000W/1500W/2000W |
|
After-sales Service
|
Spare Parts and Technology Support |
| Speed |
Based on Customers Requirements |
| Warranty |
2 Years |
| Certification |
CE, ISO9001, ROHS |
| Lead Time |
3 Working Weeks |
3 . How Does A Centrifugal Feeder System Work :
Centrifugal feeder systems are efficient solutions used in manufacturing processes, especially in industries such as labeling automation, high-speed packaging, printing, and inspection. These systems excel at handling complex applications and high-speed operations, reducing manual handling and improving efficiency.
The process begins by introducing parts in bulk from a hopper or elevator, with flow control managed by a photocell. Maintaining the correct part level is crucial for proper travel and separation. Centrifugal feeders can efficiently orient and sort intricate parts.
Inside the feeder, parts are directed to a rotating center disc mounted at an angle. The feeder consists of this disc and a horizontally mounted rotating bowl that can independently rotate at different speeds.
Rotation generates centrifugal force, pushing parts towards the raised edge of the feeder disc. The disc's edge is slightly elevated compared to the bowl's running surface, allowing parts to load onto it.
Centrifugal force propels parts past mechanical and pneumatic tooling, aligning them in a common orientation. Improperly oriented parts are rejected by other tooling features.
Parts flow through the system until they reach their final assembly or packaging destination.
Centrifugal feeder systems are favored for their gentle handling, minimizing scuffs and surface imperfections. They offer higher feed rates, operate quietly, and require minimal maintenance and upkeep.

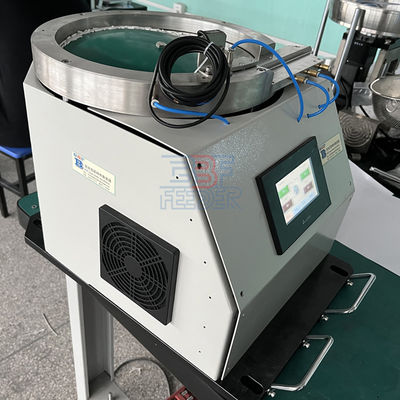

4 . More Pictures:
