Control Speed Vibratory Bowl Feeder Small Parts Rotary Vibratory Feeder

Control Speed Vibration Bowl Feeder Small Parts Rotary Vibratory Feeder

1 . Descriptions:

The Automatic Vibratory Bowl Feeder is a versatile and essential auxiliary equipment used in automatic assembly machines. It facilitates the orderly arrangement of various products and can be combined with assembly equipment to create complete products. The Vibration Bowl Feeder is widely employed in industries such as electronics, hardware, plastic cement, pharmaceuticals, food, toys, stationery, and daily goods. It serves as a vital component in industrial automation, providing solutions for supply needs. Additionally, the Vibration Bowl Feeder is capable of performing tasks such as sorting, testing, counting, and packaging, making it a valuable and adaptable modern high-tech product.

A typical vibratory feeder bowl setup involves a specially shaped bowl designed to orient the parts in a specific direction. The bowl is mounted on a vibrating drive unit controlled by a variable-amplitude control box. An outfeed accumulation track, which can be linear or gravity-based, conveys the parts and directs them into the assembly machine. The drive unit, available in electromagnetic and pneumatic options, generates vibrations that cause the parts to move along a circular, inclined track within the bowl. Customized tooling ensures consistent and reliable sorting and orientation of the parts. Once properly aligned, the parts line up in the track and are transported to the assembly station. The dimensions of the track, including length, width, and depth, are carefully selected to suit the specific application, component shape, and size. Coatings are applied to the bowl and track to enhance traction, reduce product damage, and minimize noise levels. The vibration speed of the bowl feeder is controlled by a variable speed controller, while sensors regulate the flow of parts to the outfeed track.

2 . Specifications:

3 . Purpose Of Vibratory Bowl Feeders :

Vibratory bowl feeders play a vital role in various industries by ensuring continuous feeding and synchronized connection between machines, thereby increasing efficiency. These feeders consist of a circular vibrator and a bowl. The electromagnetic vibrator acts as the driving element, propelling the parts forward in selection units and autonomy or link-lung units. The vibrator is composed of two elastically connected masses (active and reactive) and operates at a natural frequency, responding to the magnetic field's excitation caused by pulsing electromagnets.

The use of vibratory bowl feeders is widespread across industries such as pharmaceuticals, automotive, electronics, cosmetics, food, packaging, plastics, glass, foundry, steel, construction, and metalworking. They provide a cost-effective alternative to manual labor, saving manufacturers time and labor costs. These feeders ensure uniform and synchronized feeding, enhancing operational efficiency in industrial processes.

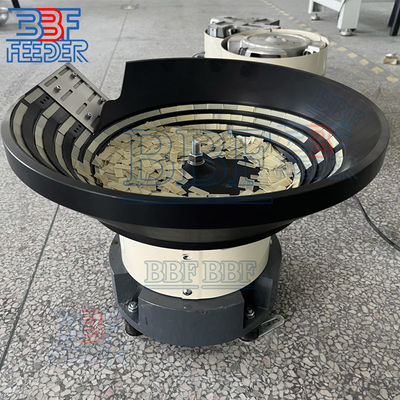

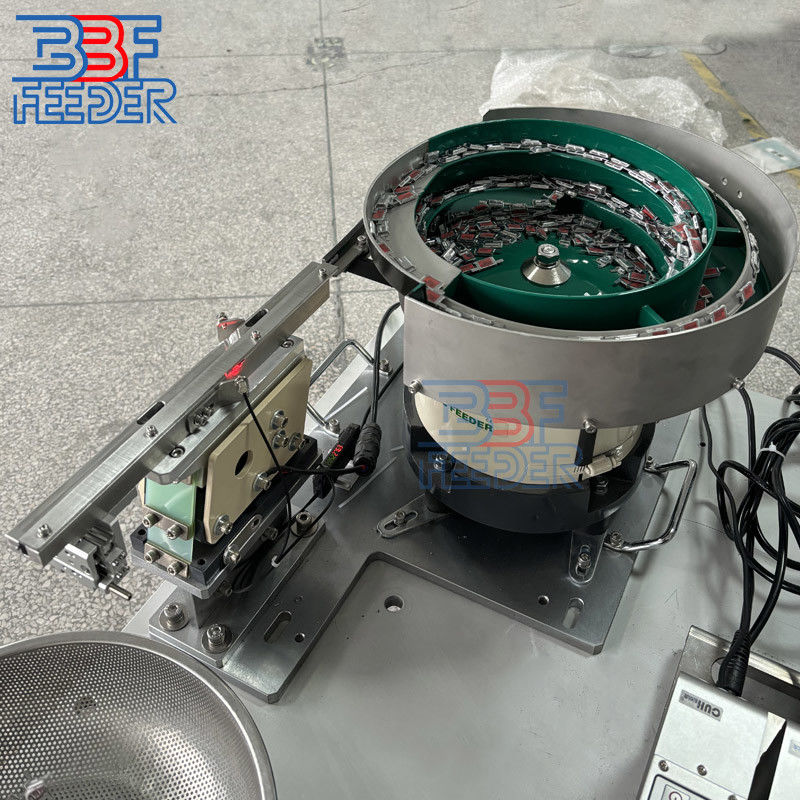

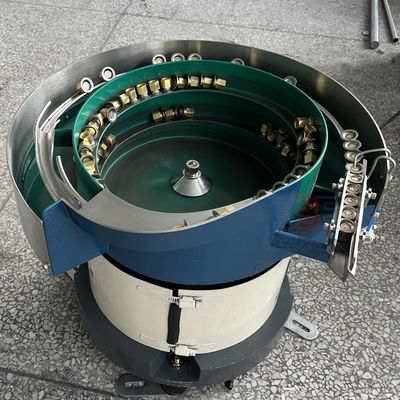

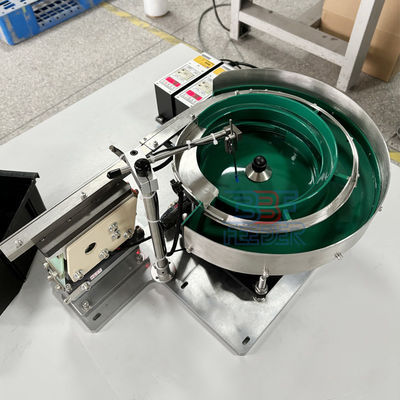

4 . More Pictures:
