Silicone Pad Vibratory Hopper Feeder Automatic Vibratory Bowl For Assembly Line

Vibrate Bowl Feeder Silicone Pad Automatic Vibratory Bowl For Assembly Line

1 . Descriptions:

Vibratory bowl feeders are widely used in various industries to automate complex production processes by feeding parts and materials with different configurations. However, like any mechanical device, these feeders can suffer damage from repeated use and extreme conditions. Such sudden failures can lead to costly downtimes and repairs, disrupting the entire production process.

If you are experiencing frequent troubles with your vibratory feeder and it is not performing as expected, there are certain aspects you should check before considering taking it for repairs.

What to check in a damaged vibratory feeder?

It is crucial for users to have a clear understanding of the different parts of Vibratory bowl feeders. This knowledge allows for a closer examination of these parts to identify the root cause of the failure. When the unit fails to operate as expected, check the following:

Ensure that the bowls, track, and hopper pans are functioning independently and not touching the mounting plate or any brackets.
Check for the presence of dirt or contaminants that may be clogging the parts and hindering smooth functioning.
Examine for any misaligned parts, including the bowl discharge unit and inline track.
Inspect the springs, especially those fastened just above the spacer on the lower and upper clamps, for any breakage.
Look for cracks and broken welds.
Verify the condition of the coils, controllers, and sensors.

These are some of the crucial parts that should be closely checked to identify the problem. If the issues are minor, you can often resolve them by following the troubleshooting tips provided by the manufacturer. However, it is essential to thoroughly read and understand the instructions in the user manual before attempting any troubleshooting. By following the recommended troubleshooting methods, you can address minor issues and potentially avoid the need to take the unit to a service station, saving both time and money. However, if the damage is severe and beyond repair in-house, it is advisable to have the unit inspected by a reputable repair technician.

2 . Specifications:

3 . How to Eliminate ‘Dead Spots’ in Vibratory bowl feeders:

Vibratory bowl feeders are essential in industries for sorting and feeding parts, playing a significant role in manufacturing and assembly processes. To ensure smooth operation, it is crucial to address any issues that may arise. One common problem with Vibratory bowl feeders is the occurrence of "dead spots" where parts refuse to move while other areas function normally. Here are two main problems associated with dead spots, along with their solutions:

Problem 1: Spot does not move
If the dead spot remains stationary, it is likely due to issues with the clamping screws. To address this problem:

Loosen the screw and observe the movement of parts in the feeder.
Gradually tighten the screw to find the appropriate tension for the spring.
Loose feet can also cause dead spots, so ensure that the feeder is securely mounted.

Problem 2: Spot moves with the bowl
If the dead spot moves along with the bowl, it may indicate a manufacturing defect, such as a broken weld. Consider the following solutions:

Re-weld the broken part if possible.
Alternatively, it is advisable to replace the faulty component entirely, following best practices.
Inspect the weld seam of the coil assembly to identify any defects.

If the above solutions do not resolve the issue, it is recommended to consult a technician or contact the manufacturer of the vibratory feeder. They possess the expertise to accurately diagnose the problem and provide an appropriate solution. Common corrective measures include adding counterweights, replacing components, or adjusting the torque on the springs.

By addressing dead spots effectively, you can ensure the proper functioning of your vibratory feeder, optimizing productivity in your manufacturing processes.

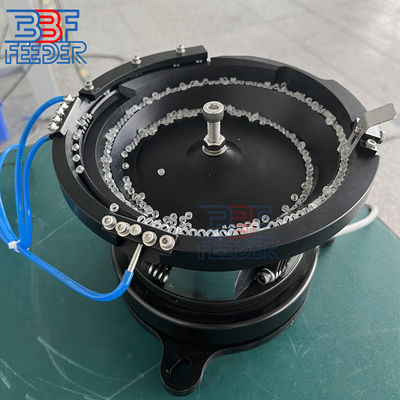

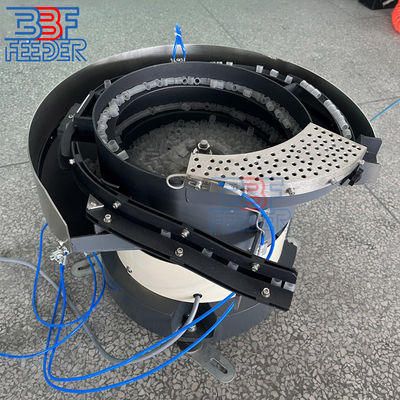

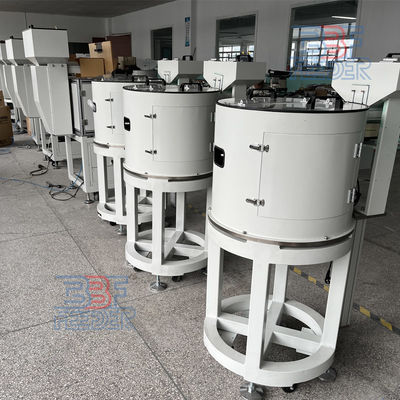

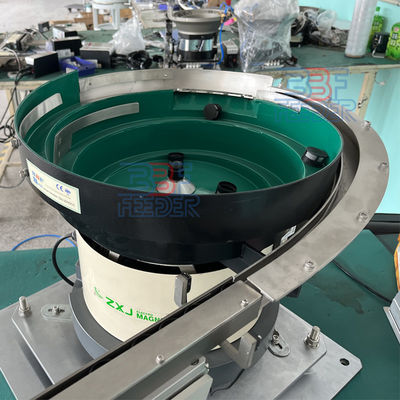

4 . More Pictures:
